Cable Lugs Supplier
Cable Lugs Supplier in Kolkata, West Bengal, Odisha, Jharkhand, Bihar, Patna, Chhattisgarh, Ranchi and Assam

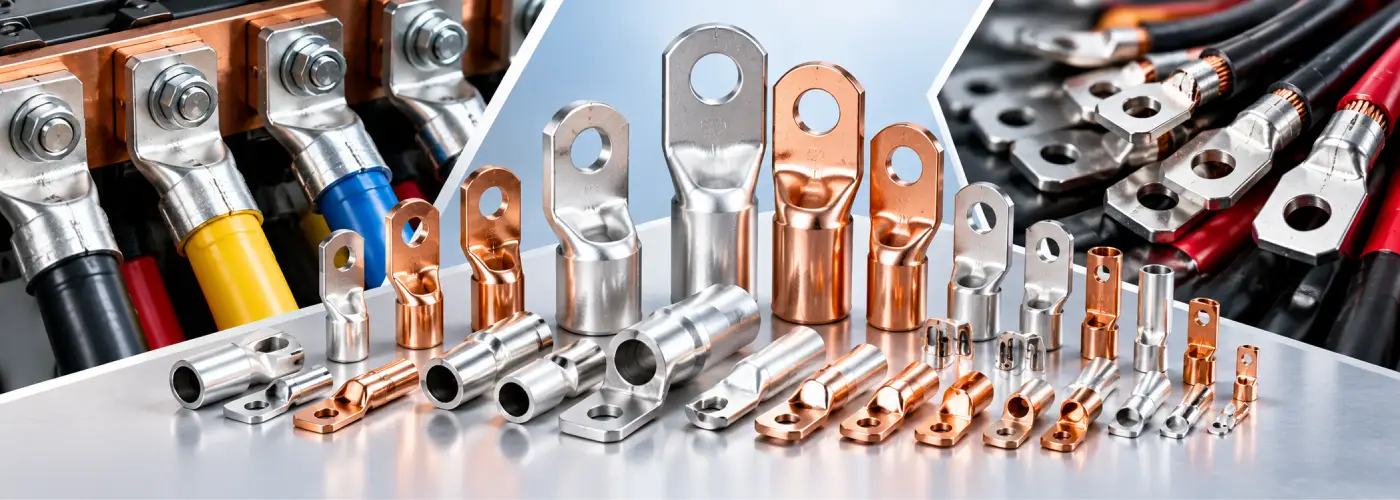

Powertech Distributor supplies cable lugs for electrical connections in industrial facilities, commercial buildings, power distribution networks and control panel installations. Our product range includes Bimetallic Cable Lugs, Copper Tube Terminals, Fork Terminals and Dowels Cable Lugs, serving electrical contractors, panel manufacturers, maintenance teams and bulk buyers across Kolkata, West Bengal, Odisha, Jharkhand, Bihar, Patna, Chhattisgarh, Ranchi and Assam.
Each cable lug variety serves a different termination requirement. Choosing the correct type according to conductor material, cable cross-section, stud size and installation conditions helps establish a dependable electrical connection and simplifies installation work.
Know More About the Product
Cable lugs are electrical termination components used to connect cable conductors to equipment terminals, busbars, circuit breakers, distribution panels and other electrical devices. They provide a defined contact area for bolted or screw-type connections, depending on the terminal design.
Cable lugs are available in different materials, shapes and constructions to accommodate various conductors and connection points. Copper terminals are commonly selected for copper conductors, while bimetallic lugs are designed to connect aluminium conductors to copper busbars or terminals. Fork terminals allow convenient attachment to compatible screw terminals, while dowel-type cable lugs should be selected according to their specific product design and application.
Powertech Distributor helps customers identify suitable cable termination products based on their electrical installation requirements.
Primary Function of Cable Lugs
Cable lugs create a secure interface between a cable conductor and an electrical terminal. When correctly sized, prepared and installed, they help provide reliable electrical contact and mechanical retention.
Their main functions include:
- Electrical Connectivity: Establishing a conductive path between cables and equipment terminals.
- Mechanical Attachment: Allowing conductors to be fastened securely to compatible connection points.
- Conductor Compatibility: Accommodating specified copper or aluminium conductors, depending on the lug design.
- Installation Efficiency: Simplifying cable termination during panel assembly, equipment installation and maintenance.
- Connection Reliability: Supporting consistent contact when the correct lug, crimping tool and installation procedure are used.
Different Types of Cable Lugs Supplied by Powertech Distributor

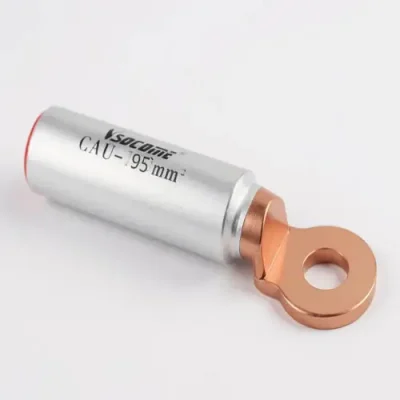

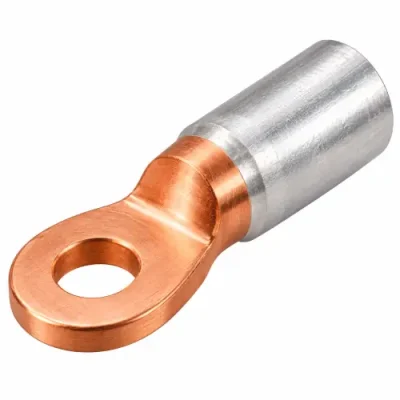

Bimetallic Cable Lugs
Bimetallic lugs typically combine an aluminium barrel with a copper palm, often joined through friction welding. They are designed for suitable aluminium-to-copper electrical connections, helping address compatibility concerns associated with directly joining dissimilar metals.
Best suited for: Aluminium power cables terminating on copper busbars, switchgear terminals and distribution equipment, where the lug design is approved for the application.
Copper Tube Terminals
Copper tube terminals are manufactured from tubular copper stock or formed copper components. Their barrel accommodates the conductor, while the terminal palm provides a contact surface for bolted connections. They are commonly used with compatible copper cables.
Best suited for: Power distribution panels, switchboards, electrical machinery, earthing arrangements where specified, and industrial power connections.

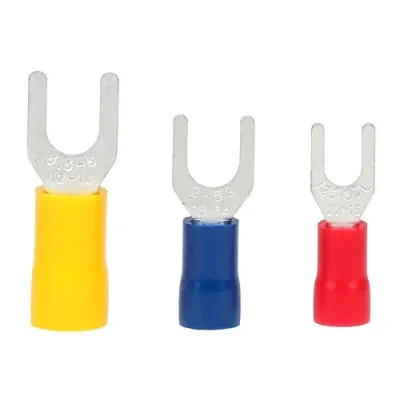

Fork Terminals
Fork terminals feature a U-shaped or open-ended contact section that fits beneath a compatible screw or terminal stud. This construction can make installation and removal convenient without completely removing the fastening screw, provided the terminal arrangement permits it.
Best suited for: Control wiring, electrical equipment terminals, low-current circuits and instrumentation connections, depending on the terminal’s current and voltage ratings.

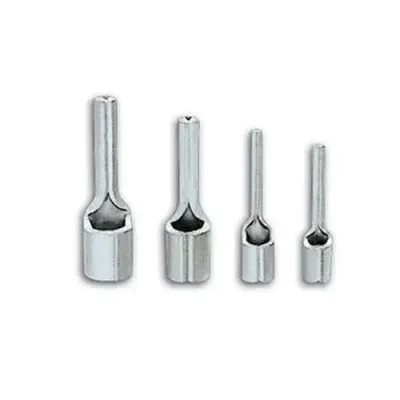

Dowels Cable Lugs
Dowels cable lugs may refer to a specific pin- or dowel-style termination design. The exact construction should be verified against the supplier’s product catalogue because naming and geometry can vary between manufacturers.
Best suited for: Equipment terminals or connection systems specifically designed to accept the corresponding dowel or pin-type termination.
Technical Specifications of All Cable Lug Types
Specifications vary by manufacturer, conductor class and product series. The following table outlines the principal parameters to check before placing an order.
Technical parameter | Bimetallic Lugs | Copper Tube Terminals | Fork Terminals | Dowels Cable Lugs |
Main material | Aluminium barrel with copper palm, typically | Copper | Copper, brass or other specified conductive metal | Depends on product design |
Conductor compatibility | Commonly aluminium cable to copper terminal | Usually copper cable | Depends on terminal model and conductor | Must be confirmed from product datasheet |
Connection shape | Flat palm with bolt hole | Flat palm with bolt hole | Open U-shaped fork | Pin or dowel style, if applicable |
Cable size | Specified aluminium conductor cross-section | Specified copper conductor cross-section | Model-dependent wire cross-section | Model-dependent |
Mounting size | Palm hole diameter and spacing | Palm hole diameter and spacing | Screw or stud compatibility | Pin diameter and connection geometry |
Installation method | Manufacturer-specified crimping | Crimping or specified termination method | Crimping, screw or other specified method | As specified by the manufacturer |
Surface finish | As specified | Often tin-plated or bare copper | May be plated or insulated, depending on model | As specified |
Key selection factor | Metal transition and cable compatibility | Conductor size and current requirements | Terminal geometry and electrical rating | Exact product identification and mating connection |
Important Technical Details to Confirm
- Conductor cross-section in mm² or the specified AWG size.
- Cable type, conductor material and conductor class.
- Lug barrel dimensions and compatible crimping die.
- Stud diameter, palm width and hole spacing where applicable.
- Material grade, plating and corrosion requirements.
- Current rating, voltage suitability and temperature limits from the manufacturer.
- Applicable standards, testing and certifications, where required.
Note: Exact sizes, current ratings, dimensions and standards should be taken from the relevant manufacturer’s datasheet rather than assumed to be common to every lug in a category.
Top Reasons to Trust Powertech Distributor
Powertech Distributor supports customers seeking electrical connection accessories for new installations, equipment manufacturing and ongoing maintenance. We focus on helping buyers identify products that match the technical requirements of their applications.
- Multiple Lug Varieties: Options for copper connections, aluminium-to-copper transitions and compatible terminal arrangements.
- Application-Based Selection: Assistance in identifying products according to conductor size, terminal geometry and connection requirements.
- Industrial Procurement Support: Suitable for electrical contractors, control panel builders, maintenance departments and project purchasers.
- Regional Supply Coverage: Serving customers across Kolkata, West Bengal, Odisha, Jharkhand, Bihar, Patna, Chhattisgarh, Ranchi and Assam.
- Bulk Enquiry Assistance: Buyers can share specifications and required quantities to request a quotation.
Applications Across Industries
Cable lugs are used wherever electrical conductors must be terminated reliably. The required lug type depends on the equipment design, conductor material and electrical load.
- Power Distribution and Switchgear: Bimetallic and copper tube lugs can be used for suitable power cable terminations in distribution boards, switchgear and busbar assemblies.
- Control Panels and Automation: Compatible fork terminals and other specified termination components help organise control wiring and equipment connections.
- Manufacturing and Machinery: Appropriate cable lugs support electrical connections for industrial machines, motors and production equipment.
- Commercial and Infrastructure Projects: Cable termination accessories are used in building electrical systems, facility upgrades and infrastructure installations, subject to the specified design.
Our Commitment to Excellence
Powertech Distributor understands that selecting an electrical accessory involves more than matching a product name. Material compatibility, conductor dimensions, installation tools and terminal design all affect the suitability of a cable lug.
We aim to support informed purchasing by helping customers identify the correct product category and verify the specifications required for their application. Our service coverage extends to Kolkata and the wider markets of West Bengal, Odisha, Jharkhand, Bihar, Chhattisgarh and Assam. For project-based procurement, customers can provide cable sizes, conductor materials, terminal stud dimensions and expected quantities to streamline product selection.
Final Thoughts
Choosing the right cable lug is an important part of building a dependable electrical connection. Bimetallic lugs are generally used for compatible aluminium-to-copper transitions, copper tube terminals suit specified copper conductor connections, fork terminals support compatible screw-terminal arrangements, and dowel cable lugs require confirmation of the exact pin or dowel-style design. If you are looking for a cable lugs supplier in Kolkata, West Bengal, Odisha, Jharkhand, Bihar, Patna, Chhattisgarh, Ranchi or Assam, contact Powertech Distributor to enquire about available varieties, technical specifications and competitive prices. Bulk buyers and electrical contractors can share their requirements to receive assistance with suitable cable termination products.
